Hydrostatic Drive

The Hydrostatic Drive with Gearbox from SAUER BIBUS

• the 45° wide angle technology offers a large
   continuously variable conversion range
• the complete speed range can be passed through
   without traction power interruption
• automatic adjustment of the power requirements
• axial piston displacement motor in bent axis design in open and
   closed circuits
• optimized efficiency
• low noise
• reduced fuel consumption
• high power density with small dimensions
• can also be used as a standard hydraulic motor
• low pressure adjustment and high pressure adjustment
• 100% compatible with Sauer Bibus traction electronics



CD GT-S1 N 233V High Pressure Adjustment

for smaller and medium drive power
transmission ratios 0,8 - 1,6
Max. torque at the power unit shaft 2000 Nm
torque at the output shaft 1280-2560 Nm
displacement volume 233 cm3
max. 480 bar



CD GT-S1 A 233V High Pressure Adjustment

for medium drive power
transmission ratios 0.8 - 1.6
max. torque at the power unit shaft 2000 Nm
torque at the output shaft 1600-3200 Nm
displacement volume 233cm3
max. 480 bar
with adaption motor

loading...
  • CD GT S1 N HD ISO

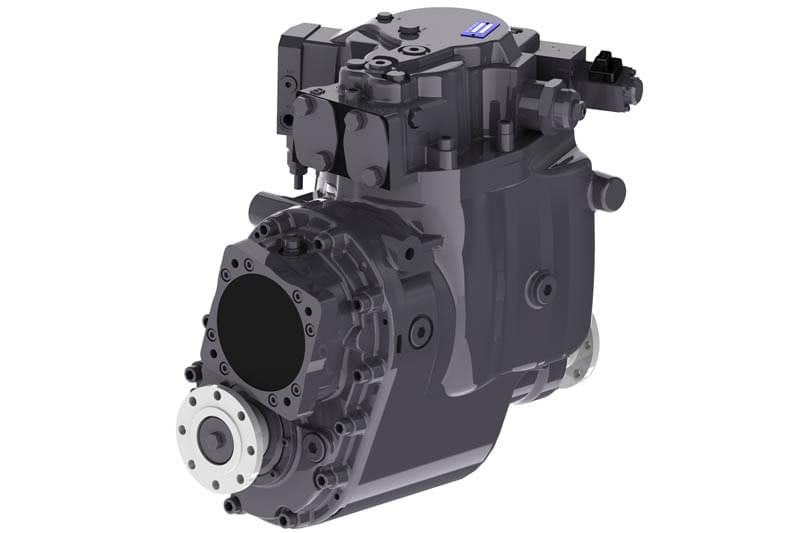

  • CD GT-S1-A HD iso 2
